Sensitivity analysis for survey weights • senseweight

In the following vignette, we will walk through how to conduct a sensitivity analysis for survey weights using senseweight.

We will illustrate the analysis using a synthetically generated dataset (available in data(poll.data)). The dataset is a synthetic dataset comprising of 1000 individuals, where the outcome variable Y indicates whether the individual supports a policy position. When Y = 1, this implies that the individual indicated support, whereas 0 implies a lack of support. The dataset contains common demographic covariates used in practice (age, education, gender, race, party identification, and an indicator for whether an individual is a born-again Christian).¹

library(senseweight)
library(survey)

To load in the dataset:

data(poll.data)
poll.data |> head()
#>   Y age_buckets         educ gender  race         pid bornagain
#> 1 0      36to50      College    Men White Independent        No
#> 2 0      Over65 Some college  Women White Independent       Yes
#> 3 1      36to50      College  Women White    Democrat        No
#> 4 1      51to64    Post-grad  Women White    Democrat        No
#> 5 0      Over65 Some college    Men White Independent       Yes
#> 6 1      36to50    Post-grad    Men Other       Other        No

Setting up survey objects

The senseweight package builds on top of the survey package to conduct sensitivity analysis. To start, we will set up different survey objects for our analysis.

poll_srs <- svydesign(ids = ~ 1, data = poll.data)

We have created a vector of population targets using a subset of the 2020 CES. It is in a locally stored vector pop_targets:

pop_targets = c(1, 0.212, 0.264, 0.236, 0.310,
                0.114, 0.360, 0.528, 0.114,
                0.021, 0.034, 0.805,
                0.266, 0.075, 0.312, 0.349)
#Match covariate names in polling data
names(pop_targets) = model.matrix(~.-Y, data = poll.data) |> colnames()
print(pop_targets)
#>             (Intercept)       age_buckets36to50       age_buckets51to64
#>                   1.000                   0.212                   0.264
#>       age_bucketsOver65 educHigh School or Less           educPost-grad
#>                   0.236                   0.310                   0.114
#>        educSome college             genderWomen               raceBlack
#>                   0.360                   0.528                   0.114
#>            raceHispanic               raceOther               raceWhite
#>                   0.021                   0.034                   0.805
#>          pidIndependent                pidOther           pidRepublican
#>                   0.266                   0.075                   0.312
#>            bornagainYes
#>                   0.349

We will use raking as our weighting method of choice.

#Set up raking formula:
formula_rake <- ~ age_buckets + educ + gender + race + pid + bornagain

#PERFORM RAKING:
model_rake <- calibrate(
  design = poll_srs,
  formula = formula_rake,
  population = pop_targets,
  calfun = "raking",
  force = TRUE
)


rake_results <- svydesign( ~ 1, data = poll.data, weights = stats::weights(model_rake))
#Estimate from raking results:
weights = stats::weights(rake_results) * nrow(model_rake)

unweighted_estimate = svymean(~ Y, poll_srs, na.rm = TRUE)
weighted_estimate = svymean(~ Y, model_rake, na.rm = TRUE)

The unweighted survey estimate is 0.54.

print(unweighted_estimate)
#>   mean     SE
#> Y 0.54 0.0158

In contrast, the weighted survey estimate is 0.47.

print(weighted_estimate)
#>      mean     SE
#> Y 0.46843 0.0168

Summarizing sensitivity

With the survey objects, we can now generate our sensitivity summaries. The senseweight package provides functions for researchers to generate (1) robustness values; (2) benchmarking results; and (3) bias contour plots. We walk through each of these below.

Robustness Value

The robustness value is a single numeric summary capturing how strong a confounder has to be to change our research conclusion. In general, we refer to a confounder that results in enough bias to alter the research conclusion a killer confounder. The threshold bias that results in a killer confounder depends on the substantive context. In this example, we are trying to measure support. Thus, if the bias were large enough to move the estimate from 0.47 beyond 0.5, this would imply that the proportion of individuals who support the policy would change from a minority to a majority.

The summarize_sensitivity function will produce a table that outputs the unweighted estimate, the weighted estimate, and the robustness value corresponding to a threshold value $b^*$ . The specification for the threshold value is given by the b_star argument in the summarize_sensitivity function.

summarize_sensitivity(estimand = 'Survey',
                      Y = poll.data$Y,
                      weights = weights,
                      svy_srs = unweighted_estimate,
                      svy_wt = weighted_estimate,
                      b_star = 0.5)
#>   Unweighted Unweighted_SE  Estimate        SE         RV
#> 1       0.54     0.0157686 0.4684269 0.0167966 0.04977723

We obtain a robustness value of 0.05. This implies that if the error from omitting a confounder is able to explain 5% of the variation in the oracle weights and 5% of the variation in the outcome, then this will be sufficient to push the survey estimate above the 50% threshold.

We can also choose to directly estimate the robustness value using the robustness_value function:

robustness_value(estimate = as.numeric(weighted_estimate[1]),
                 b_star = 0.5,
                 sigma2 = var(poll.data$Y),
                 weights = weights)
#> [1] 0.04977723

Benchmarking

To help reason about the plausibility of potential confounders, we can also perform benchmarking. Benchmarking allows researchers to estimate the magnitude of sensitivity parameters that correspond to an omitted confounder that has equivalent confounding strength to an observed covariate.

To benchmark a single covariate, we can use the benchmark_survey function:

benchmark_survey('educ',
                 formula = formula_rake,
                 weights = weights,
                 population_targets = pop_targets,
                 sample_svy = poll_srs,
                 Y = poll.data$Y)
#>   variable R2_benchmark rho_benchmark       bias
#> 1     educ    0.3193473    0.06009261 0.02545009

To interpret the benchmarking result above, we see that omitting a confounder with equivalent confounding strength as omitting education, controlling for all other covariates, would result in an $R^2$ parameter of 0.32, with a correlation value of 0.06. This results in a bias of 0.03.

Alternatively, we can choose to benchmark all the covariates by calling run_benchmarking. To specify that we are in a survey setting, we set estimand = "Survey" in the function:

covariates = c("age_buckets", "educ", "gender", "race",
               "educ", "pid", "bornagain")

benchmark_results = run_benchmarking(estimate = as.numeric(weighted_estimate[1]),
                 RV = 0.05,
                 formula = formula_rake,
                 weights = weights,
                 Y = poll.data$Y,
                 sample_svy = poll_srs,
                 population_targets = pop_targets,
                 estimand= "Survey")
print(benchmark_results)
#>      variable R2_benchmark rho_benchmark  bias   MRCS k_sigma_min k_rho_min
#> 1 age_buckets         0.39          0.05  0.02  20.19        0.13      4.79
#> 2        educ         0.32          0.06  0.03  18.41        0.16      3.72
#> 3      gender         0.07         -0.05 -0.01 -57.15        0.74     -4.54
#> 4        race         0.06          0.03  0.01  86.03        0.79      6.58
#> 5         pid         0.04          0.04  0.01  79.50        1.16      4.98
#> 6   bornagain         0.07          0.07  0.01  39.04        0.75      3.09

The function will automatically return the benchmarking results, as well as a measure called the minimum relative confounding strength (MRCS), which calculates how much stronger (or weaker) an omitted confounder must be, relative to an observed covariate, in order to a be a killer confounder. If the MRCS is greater than 1, this implies that an omitted confounder would have to be stronger than observed covariate to result in a killer confounder. In contrast, for an MRCS less than 1, this implies that an omitted confounder can be weaker than an observed covariate to result in a killer confounder.

Bias contour plot

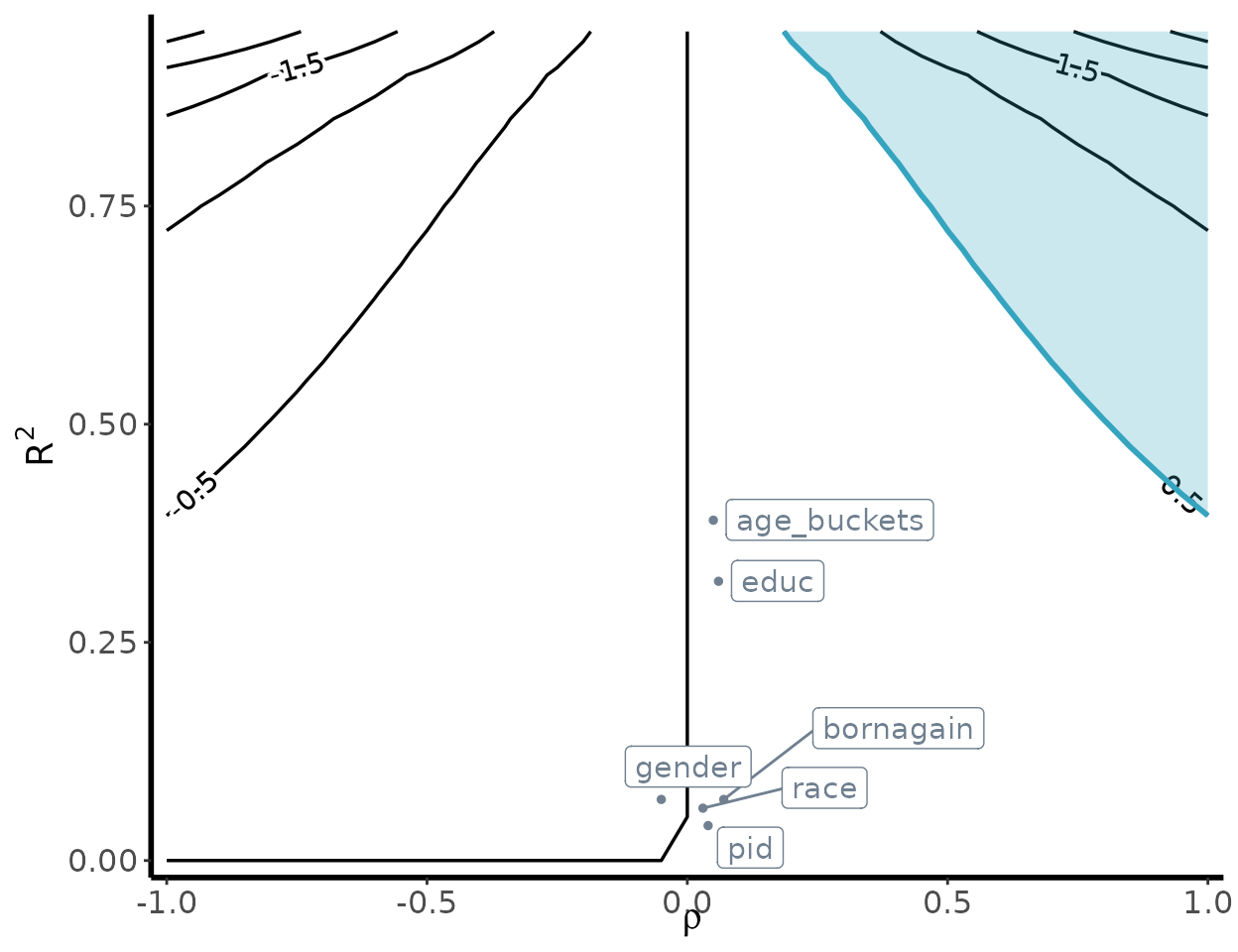

To visualize the sensitivity of our underlying estimates, we can generate a bias contour plot using the following contour_plot function:

contour_plot(varW = var(weights),
             sigma2 = var(poll.data$Y),
             killer_confounder = 0.5,
             df_benchmark = benchmark_results,
             shade = TRUE,
             label_size = 4)

The $y$ -axis varies the degree to which the omitted confounder is imbalanced, while the $x$ -axis varies the degree to which the imbalance in the omitted confounder is related to the outcome. The resulting contours represent the bias that occurs for that specified $\{\rho, R^2\}$ value. The shaded region denotes the killer confounder region. This can be specified using the killer_confounder flag, and should map to the chosen threshold value $b^*$ .
